| สถานที่กำเนิด | มณฑลเจียงซู ประเทศจีน |
| ชื่อแบรนด์ | AKS |
| ได้รับการรับรอง | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
| หมายเลขรุ่น | TSM-DE19R |

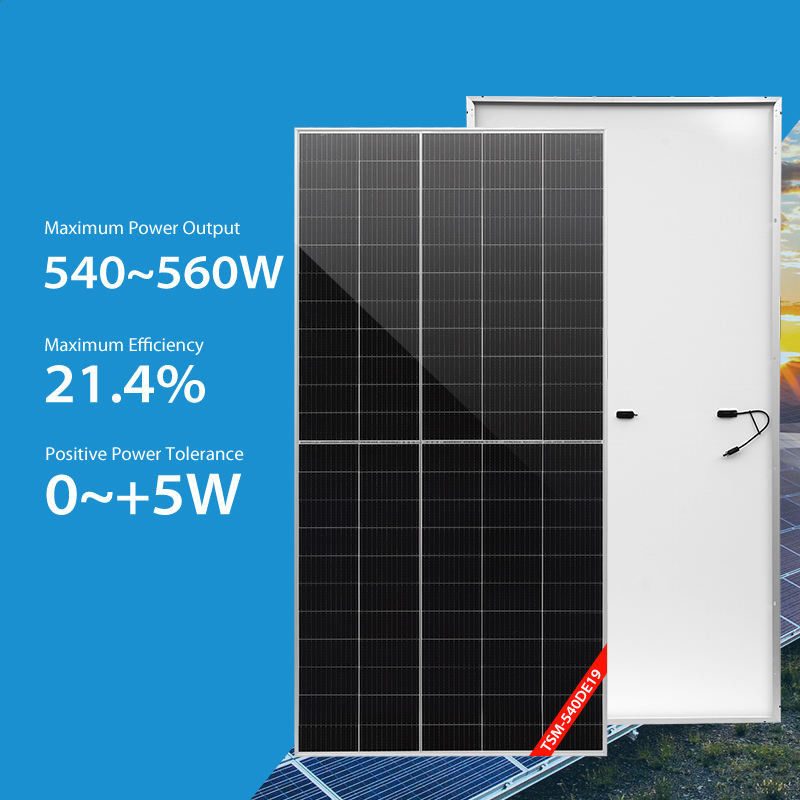

Tier 1 Photovoltaic Modules Solar Power Trina Solar Panels Vertex Mono PERC 560W-580W Solar Energy
Durability is a crucial factor when it comes to PV solar panels, as they must withstand harsh weather conditions and environmental factors throughout their lifespan. Our PV solar panels are constructed with robust materials and features that ensure their resilience and longevity. This durability translates to consistent performance and energy production, providing you with a dependable source of renewable energy for the long term. Additionally, our PV solar panels come with extended warranty periods for added peace of mind and protection for your investment.
| Model No. | 530 | 535 | 540 | 545 | 550 | 555 | 560 |
| Warranty | |||||||
| Product Warranty | 12 Years | ||||||
| Power Warranty | 25 Years of 84.8% Output Power | ||||||
| Electrical Data at STC | |||||||
| Maximum Power (Pmax) | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp | 555 Wp | 560 Wp |
| Voltage at Maximum Power (Vmpp) | 30.8 V | 31 V | 31.2 V | 31.4 V | 31.6 V | 31.8 V | 32 V |
| Current at Maximum Power (Impp) | 17.21 A | 17.28 A | 17.33 A | 17.37 A | 17.4 A | 17.45 A | 17.49 A |
| Open Circuit Voltage (Voc) | 37.1 V | 37.3 V | 37.5 V | 37.7 V | 37.9 V | 38.1 V | 38.3 V |
| Short Circuit Current (Isc) | 18.31 A | 18.36 A | 18.41 A | 18.47 A | 18.52 A | 18.56 A | 18.6 A |
| Panel Efficiency | 20.30% | 20.50% | 20.70% | 20.90% | 21% | 21.20% | 21.40% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||||
| Electrical Data at NOCT | |||||||
| Maximum Power (Pmax) | 401 Wp | 405 Wp | 409 Wp | 413 Wp | 417 Wp | 420 Wp | 424 Wp |
| Voltage at Maximum Power (Vmpp) | 28.6 V | 28.8 V | 29 V | 29.2 V | 29.3 V | 29.5 V | 29.7 V |
| Current at Maximum Power (Impp) | 14.01 A | 14.06 A | 14.1 A | 14.15 A | 14.19 A | 14.23 A | 14.26 A |
| Open Circuit Voltage (Voc) | 35 V | 35.1 V | 35.3 V | 35.5 V | 35.7 V | 35.9 V | 36.1 V |
| Short Circuit Current (Isc) | 14.76 A | 14.8 A | 14.84 A | 14.88 A | 14.92 A | 14.96 A | 14.99 A |
| Temperature | 43±2 °C | ||||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||||
| Thermal Ratings | |||||||
| Operating Temperature Range | 40~85 °C | ||||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||||
| Temperature Coefficient of Voc | 0.25 %/°C | ||||||
| Temperature Coefficient of Isc | 0.04 %/°C | ||||||
| Maximum Ratings | |||||||
| Maximum System Voltage | 1500 V | ||||||
| Series Fuse Rating | 30 A | ||||||
| Material Data | |||||||
| Panel Dimension (H/W/D) | 2384x1096x35 mm | ||||||
| Weight | 28.6 kg | ||||||
| Cell Type | Monocrystalline | ||||||
| Cell Number | 110 | ||||||
| Glass Type | Anti-reflection Coating, Tempered | ||||||
| Glass Thickness | 3.2 mm | ||||||
| Encapsulant Type | EVA | ||||||
| Frame Type | Anodized Aluminium Alloy | ||||||
| Junction Box Protection Class | IP 68 | ||||||
| Connector Type | MC4 | ||||||
| Cable Crossection | 4 mm2 | ||||||
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting technology
➤Ensured PID resistance through cell process and module material control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load
